UV-Curable dielectric resins for ultra low loss

Ultra-low loss, unfilled materials with varied viscosities tailored to your equipment or process requirements. Our UV-curable resins can provide a dielectric constant (Dk) of ≤ 3.0 and a dissipation factor (Df) of ≤ 0.003.

Our offering

PRO14729 - PRO14730 - PRO14731 designed for high frequency applications

Product Benefits

Ultra-low loss materials wth varied viscosities tailored to your equipment or process requirements
Unfilled
3D-printable
Excellent dielectric properties

Electrical Properties
	PRO1729	PRO14730	PRO14731
Dielectric Constant (10 GHz)	2.61	2.0	2.59
Dielectric Constant (1 kHz)	2.91	2.92	2.98
Dissipation Factor (10 GHz)	0.0028	0.0029	0.0030

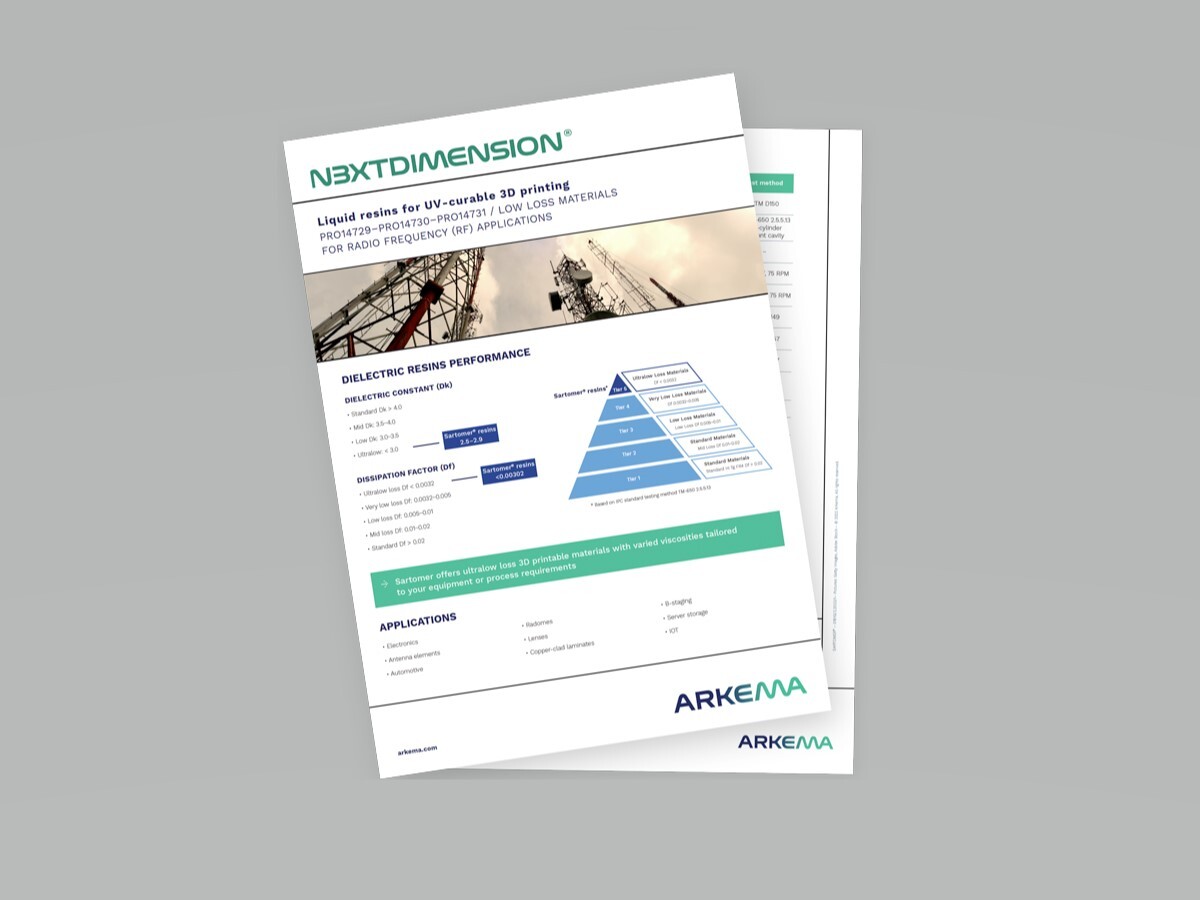

Download the technical flyer

Access the technical data flyer for more information:

Electrical Properties
Thermal Properties
Physical Properties
Curing Conditions

CLICK TO DOWNLOAD
