UV-Curable dielectric resins for ultra low loss
Ultra-low loss, unfilled materials with varied viscosities tailored to your equipment or process requirements. Our UV-curable resins can provide a dielectric constant (Dk) of ≤ 3.0 and a dissipation factor (Df) of ≤ 0.003.
Ultra-low loss resins for 3D printing and advanced electronic applications
PRO14729 - PRO14730 - PRO14731 for high frequency applications
Product Benefits:
- Ultra-low loss materials with varied viscosities tailored to your equipment or process requirements
- Unfilled
- 3D-printable
- Excellent dielectric properties
| Electrical Property | PRO14729 | PRO14730 | PRO14731 |
|---|---|---|---|
| Dielectric Constant (10 GHz) |
2.61 | 2.60 | 2.59 |
| Dielectric Constant (1 kHz) |
2.91 | 2.92 | 2.98 |
| Dissipation Factor (10 GHz) |
0.0028 | 0.0029 | 0.0030 |

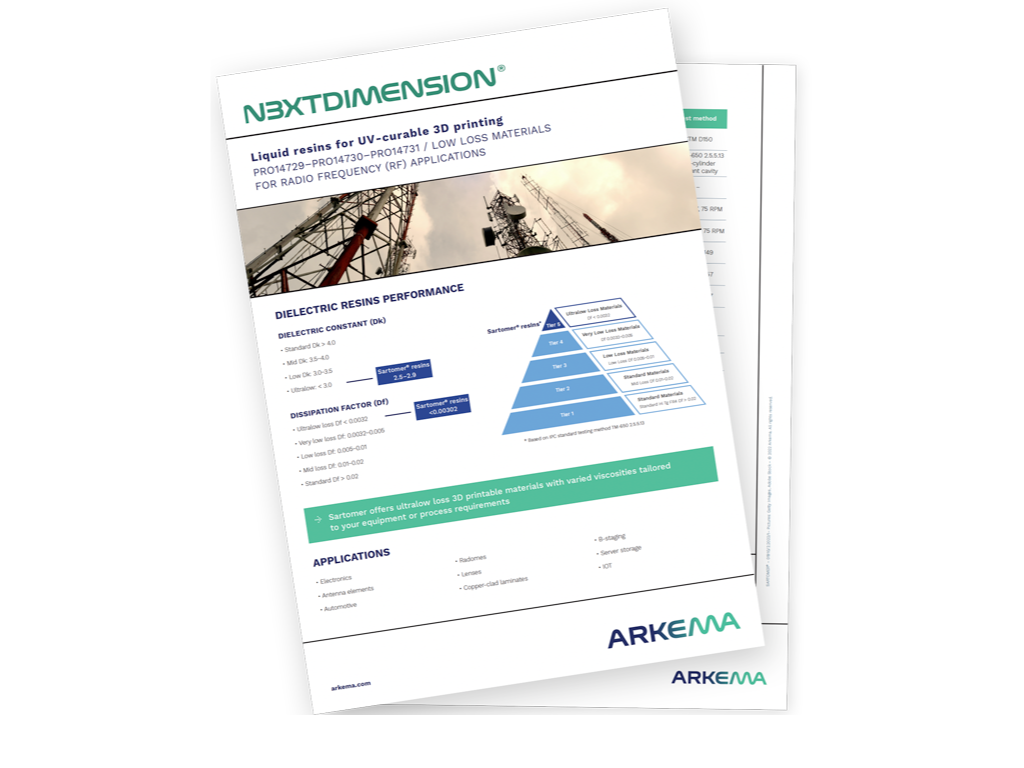

Download the technical flyer for more information:
- Breakdown strength (V/μm)
- Volume resistivity (Ω*cm)
- Surface resistivity (Ω/□)
- CTE 20°C (above Tg/below Tg) (μm/m*C)
- Tα (°C), DMA
- Td onset (°C), TGA
- Moisture absorption (%)
- Printing & post-curing conditions
Watch the webinar recording
Webinar: 3D printed dielectric resins for high frequency applications
Summary & Key takeaways
- Unfilled resins capable of providing a dielectric constant of ≤ 3.0 and a dissipation factor (Df) of ≥ 0.0032, with varied viscosities tailored to your 3D printer.
- Review the dielectric, physical, mechanical and thermal properties under various conditions.
- 3D printing recommendations for best results.
- Learn more about our full service electronics support.
Antenna elements
Radomes
Lenses
Copper clad laminates
B-staging
Full service support
We understand that UV-curable electronic materials require a unique set of expertise. Our dedicated electronics team is ready to offer our knowledge and support, from product and process development, to scale up and internal electrical testing.
